VLAN vs Subnet: What’s the Difference? (2026 Guide with Diagram)

A VLAN and a subnet are not the same thing, and most people mix them up because in a healthy network they almost always show up together.

Here’s the short version. A VLAN is a Layer 2 concept. It splits a physical switch into separate broadcast domains. A subnet is a Layer 3 concept. It splits an IP address space into logical groups. One works with MAC addresses and switch ports. The other works with IP addresses and routing. They solve related problems at different layers, and good design maps one subnet to each VLAN.

That’s the answer. But the reason people keep asking is that the two overlap so cleanly in practice that they blur together. You’ll hear an engineer say “put that server on VLAN 20” and “put that server on the 10.20.0.0 subnet” to mean the same move. Both are true. They’re just describing different halves of the same segmentation.

By the end of this guide, you’ll know exactly what each one does, why they pair up, where they don’t, and which one your problem actually needs. We built this the way we teach it inside our live CCNA course, so it maps straight to what the exam and real jobs expect.

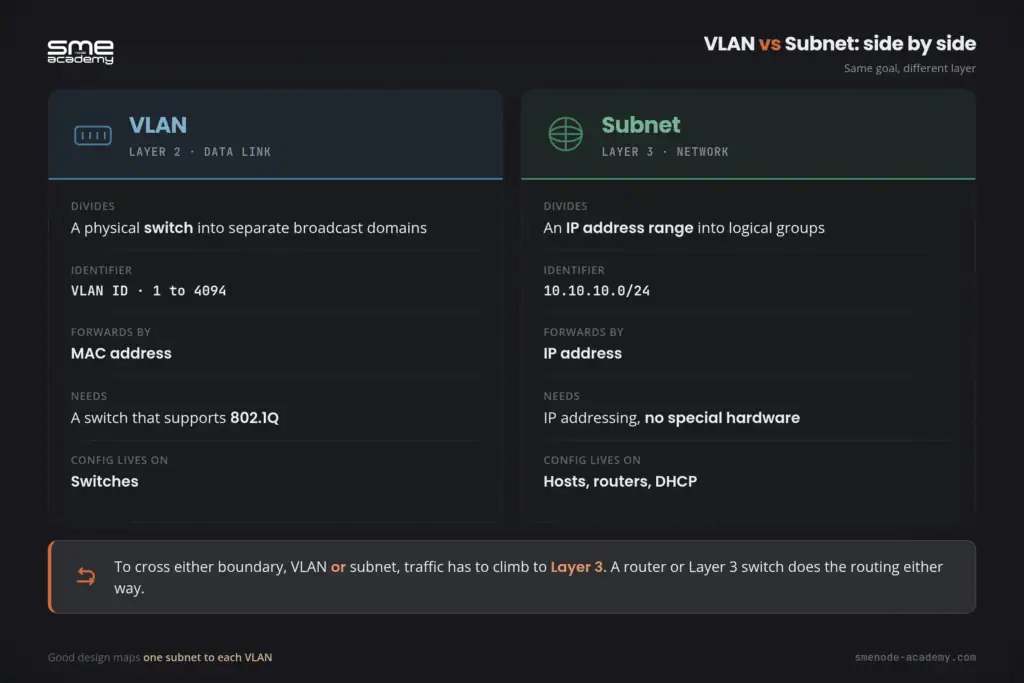

Quick Answer: VLAN vs Subnet in One Table

	VLAN	Subnet
OSI layer	Layer 2 (Data Link)	Layer 3 (Network)
Divides	A switch into broadcast domains	An IP address range into groups
Identifier	VLAN ID (1 to 4094)	Network address + mask (10.10.10.0/24)
Forwards by	MAC address	IP address
Needs	A switch that supports 802.1Q	IP addressing, no special hardware
Talk between them	Needs a router or Layer 3 switch	Needs a router or Layer 3 switch
Config lives on	Switches	Hosts, routers, DHCP

Notice the last two rows. To move traffic between VLANs or between subnets, you need Layer 3 routing either way. That’s not a coincidence. It’s the whole reason they get paired.

What Is a VLAN?

A VLAN, or Virtual LAN, is a way to carve one physical switch into several logical switches.

Picture a 48-port switch. Out of the box, all 48 ports sit in one big broadcast domain. Plug in a laptop, and its broadcasts reach every other device on that switch. Fine for a tiny office. A problem the moment you have finance, guests, and IP cameras sharing the same hardware.

A VLAN fixes that without buying more switches. You tell the switch: ports 1 to 12 are VLAN 10, ports 13 to 24 are VLAN 20. Now those two groups can’t hear each other’s broadcasts. They behave like two separate switches, even though they’re one box.

VLANs live at Layer 2, the Data Link layer. The switch forwards frames inside a VLAN based on MAC address. Devices in VLAN 10 can’t reach devices in VLAN 20 by default. No routing, no crossing. That isolation is the point.

How VLAN tagging works (802.1Q)

Here’s where it gets interesting. What happens when VLAN 10 traffic needs to travel from one switch to another over a single cable?

That’s the job of 802.1Q. When a link carries more than one VLAN (a trunk link), the switch adds a 4-byte tag to each Ethernet frame. That tag holds a 12-bit VLAN ID, which is why the usable range runs 1 to 4094. IDs 0 and 4095 are reserved by the standard, per Cisco’s 802.1Q documentation.

The receiving switch reads the tag and drops the frame into the right VLAN. Access ports (the ones facing your laptop) stay untagged. Trunk ports (switch to switch, or switch to router) carry the tags. Get that distinction wrong and traffic goes nowhere, which is one of the most common lab mistakes we see students make in week one.

Want to go deeper on how switches handle multiple VLANs and loops? Our guide on per-VLAN spanning tree (PVST) picks up right where this leaves off.

What Is a Subnet?

A subnet is a slice of an IP address space.

Where a VLAN divides a switch, a subnet divides addresses. It works at Layer 3, the Network layer. You take a block of IPs and split it into smaller, self-contained groups using a subnet mask.

Say you own 192.168.1.0/24. That’s 254 usable host addresses. Maybe you don’t want all 254 devices in one flat group. So you subnet it: 192.168.1.0/26 gives you four blocks of about 62 hosts each. Each block is its own subnet. Devices inside a subnet talk directly. Devices in different subnets need a router to reach each other.

Most private networks pull from the three RFC 1918 ranges:

• 10.0.0.0/8 (huge, common in enterprise)
• 172.16.0.0/12 (mid-size)
• 192.168.0.0/16 (home and small office)

The subnet mask is what actually defines the boundary. It tells a device which part of an IP is the network and which part is the host. That’s how your laptop decides, in a fraction of a second, whether a destination is local (send it straight there) or remote (send it to the default gateway).

So a subnet answers a Layer 3 question: which group of IP addresses does this device belong to? A VLAN answers a Layer 2 question: which broadcast domain does this port belong to? Different questions. Related answers.

New to networking and trying to lock in the fundamentals? Our beginner Network course covers IP addressing, subnetting, and VLANs from zero, with live instruction so you can ask questions the moment you’re stuck.

VLAN vs Subnet: The Diagram

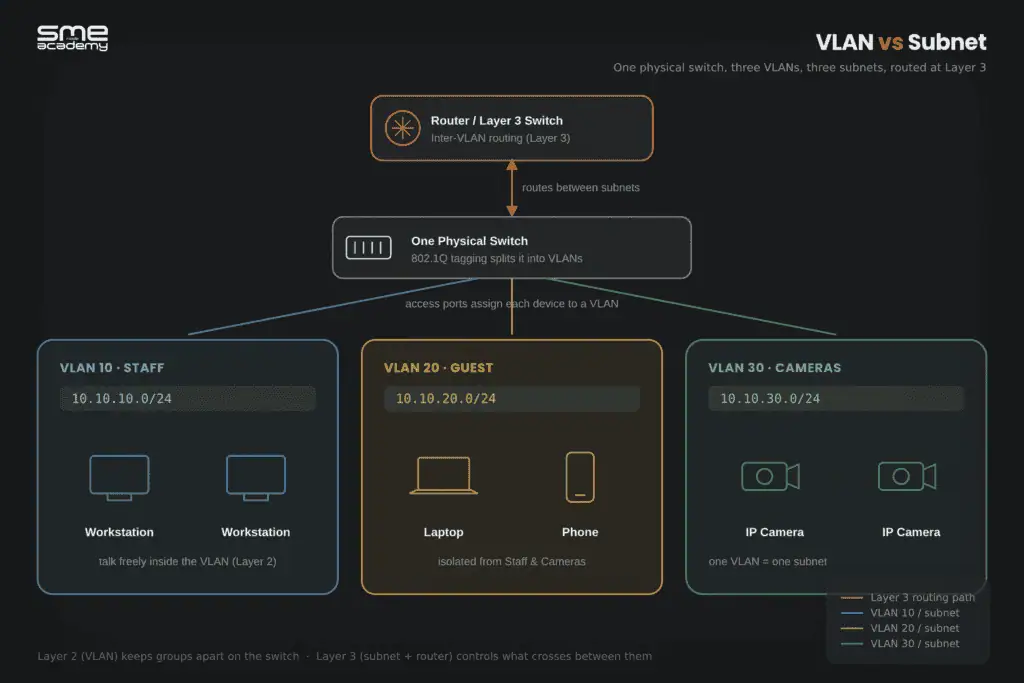

This is where it clicks for most people. One physical switch, three VLANs, three subnets, and a router tying them together.

Look at what’s happening. The single switch is split into VLAN 10 (Staff), VLAN 20 (Guest), and VLAN 30 (Cameras). Each VLAN gets its own subnet: 10.10.10.0/24, 10.10.20.0/24, 10.10.30.0/24. Inside a VLAN, devices talk freely at Layer 2. To cross from Staff to Cameras, traffic has to climb to Layer 3 and pass through the router (or a Layer 3 switch doing the same job).

That’s the one-to-one design. VLAN for the Layer 2 boundary, subnet for the Layer 3 boundary, stacked on top of each other so segmentation is clean at both layers.

Why People Confuse VLANs and Subnets

Because in almost every real network, they line up perfectly.

The industry standard is one subnet per VLAN. VLAN 10 gets subnet 10.10.10.0/24. VLAN 20 gets 10.10.20.0/24. When you “move a device to VLAN 20,” it also picks up a 10.10.20.x address from that subnet’s DHCP scope. Two actions, one outcome. So people start treating the words as interchangeable.

They’re not. Here’s the tell:

• You can have a VLAN with no IP subnet at all (a Layer 2-only segment with no routing).
• You can run multiple subnets inside a single VLAN (it works, it’s messy, and it breaks the clean broadcast isolation you wanted).

Both are legal. Both happen in the wild, usually by accident. The mismatch between them is exactly what causes those “it has an IP but can’t reach anything” tickets.

Mike, a junior admin at a logistics company, learned this the hard way in early 2026. A new subnet, 10.50.0.0/24, was added for a batch of warehouse scanners. The DHCP scope was set up. The scanners pulled addresses. And nothing worked. They could ping each other but not the gateway. The cause? The switch ports were still sitting in the default VLAN 1, while the router’s subinterface for that subnet lived on VLAN 50. The IP layer was perfect. The VLAN layer was wrong. Two hours of packet captures to find a single misconfigured access port. That’s the VLAN-subnet gap in one story.

Do You Need Both? How VLANs and Subnets Work Together

For any network beyond a handful of devices, yes. You use both, and you pair them.

Think of it like a building. VLANs are the walls that split floors into separate rooms so noise (broadcasts) stays contained. Subnets are the room numbers that let mail (IP packets) get routed to the right place. Walls without room numbers, or room numbers without walls, both leave you with a mess.

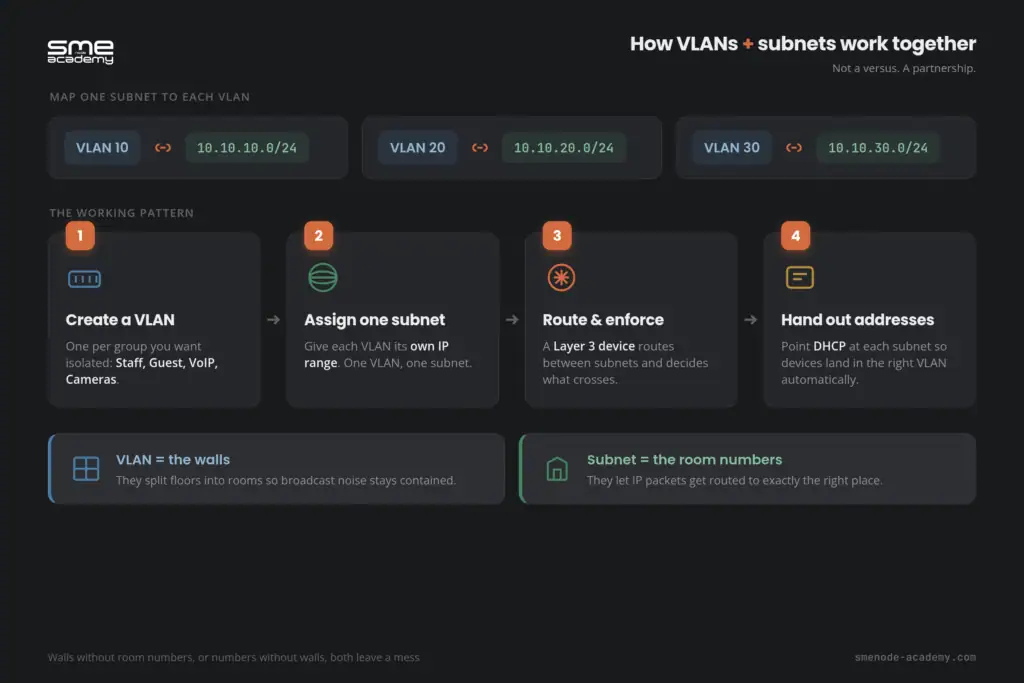

Here’s the working pattern:

1. Create a VLAN on your switches for each group you want isolated (Staff, Guest, VoIP, Cameras, Servers).
2. Assign one subnet to each VLAN.
3. Configure a Layer 3 device (a router, or a Layer 3 switch using SVIs) to route between those subnets and enforce which VLANs are allowed to talk.
4. Point DHCP at each subnet so devices land in the right VLAN with the right address automatically.

That fourth step is where segmentation becomes real security. You decide Staff can reach Servers, Guest can only reach the internet, and Cameras can reach nothing but the recording server. The VLAN keeps them apart at Layer 2. The router’s rules control what crosses at Layer 3.

Routing between subnets is its own deep topic. When you move past a single router and start choosing routing protocols, our breakdown of BGP vs OSPF explains when each one fits.

Common Mistakes with VLANs and Subnets

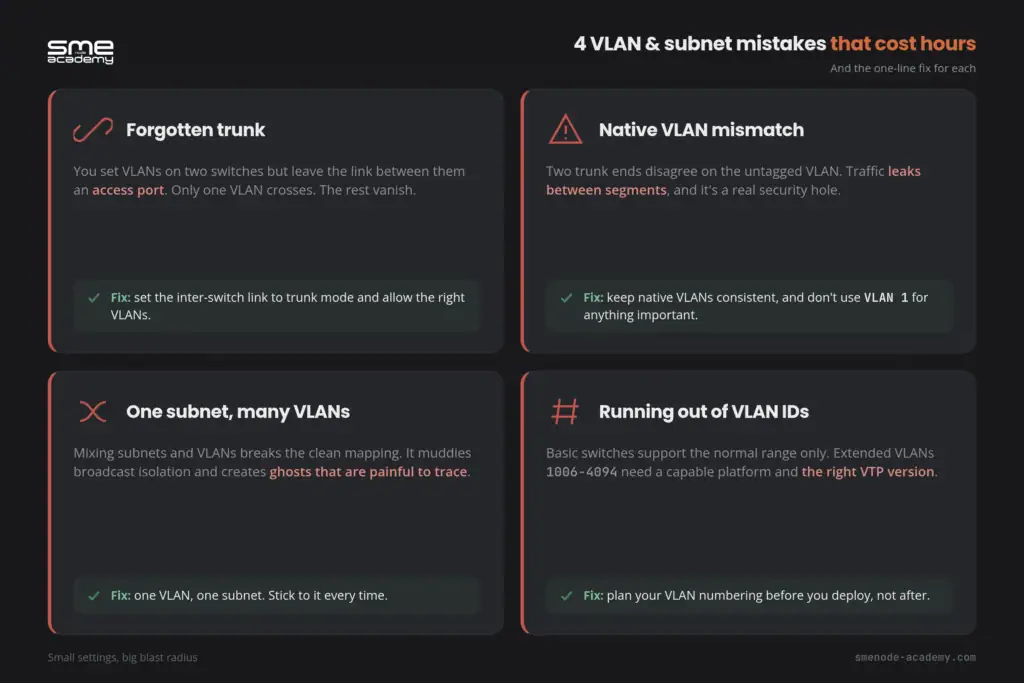

A few that cost real time:

Forgetting the trunk. You configure VLANs on two switches but leave the link between them as an access port. Only one VLAN crosses. The rest vanish. Set the inter-switch link to trunk mode and allow the right VLANs.

Native VLAN mismatch. Two ends of a trunk disagree on the untagged (native) VLAN. Traffic leaks between segments, and it’s a genuine security hole. Keep native VLANs consistent, and don’t use VLAN 1 for anything important.

One subnet, many VLANs (or the reverse). As covered above, this breaks the clean mapping and creates ghosts that are painful to trace. One VLAN, one subnet. Stick to it.

Running out of VLAN IDs on the wrong switch. Basic switches support the normal range. Extended-range VLANs (1006 to 4094) need a capable platform and the right VTP version, as Cisco’s VLAN configuration guide spells out. Plan your VLAN numbering before you deploy, not after.

Sarah, who runs IT for a 60-person design studio, hit the native VLAN trap during an office move. Everything tested fine on the bench. Once the new trunk went live between the two switch closets, guest devices started pulling internal addresses at random. The two trunk ends had different native VLANs. A one-line fix on each switch, but it took a full afternoon and a nervous call to the landlord’s cabling contractor before she traced it. Small setting, big blast radius.

VLAN vs Subnet: Which One Do You Need?

Depends on the problem you’re solving.

• You want to isolate devices on the same switch so their broadcasts and traffic stay separate? That’s a VLAN. Layer 2 segmentation.
• You want to organise IP addresses into logical groups and control routing between them? That’s a subnet. Layer 3 segmentation.
• You want proper, secure network segmentation that holds up in an audit? You want both, mapped one-to-one, with a Layer 3 device controlling what crosses.

For almost any business network, the real answer is both. A VLAN without a matching subnet is a Layer 2 island with no way to route. A subnet without a matching VLAN leaves your broadcast domains flat and noisy. Pair them, and you get segmentation that’s clean, scalable, and defensible.

This VLAN and subnet material sits at the heart of the CCNA 200-301 exam, in the switching and IP connectivity sections. If certification is your goal, our CCNA certification guide for 2026 lays out cost, topics, and the study path. Not sure networking is even your lane yet? Start with how to become a network engineer in 2026 and work backward from the job.

Frequently Asked Questions

The Bottom Line

VLAN vs subnet isn’t really a versus. It’s a partnership.

Here’s what to walk away with:

1. A VLAN is Layer 2. It splits a switch into separate broadcast domains, forwarding by MAC address.
2. A subnet is Layer 3. It splits an IP address space into groups, forwarding by IP address.
3. They pair one-to-one in good design: one subnet per VLAN.
4. Crossing either boundary needs Layer 3 routing, which is why they’re almost always deployed together.
5. Most confusion comes from that tight pairing. Keep the mapping clean and the ghosts stay away.

Get this pair right and the rest of networking gets a lot easier. Get it wrong and you’ll spend afternoons chasing tickets that turn out to be a single misconfigured port.

Ready to build this with your own hands? Our live CCNA course walks you through VLANs, trunking, subnetting, and inter-VLAN routing on real gear, with an instructor in the room and unlimited lab time. For extra drills, pair it with the CCNA study workbook from SMEnode Labs. Check the next batch schedule and grab your seat.
