Per VLAN Spanning Tree (PVST) Explained: The CCNA Guide

Per VLAN Spanning Tree (PVST) is a Cisco-proprietary protocol that runs a separate instance of the Spanning Tree Protocol for every VLAN on a switch. Each VLAN gets its own root bridge, its own loop-free topology, and its own set of blocked ports. That’s the whole idea, and it’s why Cisco switches ship with Rapid PVST+ as the default spanning tree mode right out of the box.

If you’re studying for the CCNA 200-301, this topic comes up in every switching module. And honestly? Most students memorise the commands without actually understanding why PVST exists or how it differs from standard 802.1D STP. So let’s fix that.

In our live CCNA sessions, students ask the same question within the first switching lab: “If STP already prevents loops, why do we need a separate version for every VLAN?” Here’s the honest answer. Because one spanning tree for a 30-VLAN network wastes half your bandwidth. And we’ll show you exactly why with real topology examples.

What Is Per VLAN Spanning Tree (PVST)?

Per VLAN Spanning Tree (PVST) is a Cisco-proprietary spanning tree protocol that calculates a separate loop-free topology for each VLAN configured on a switch. Instead of one spanning tree covering all VLANs, PVST runs one STP instance per VLAN. Each instance elects its own root bridge, picks its own root ports, and blocks its own redundant links.

Think of it like this. Standard STP gives the whole network one map. PVST gives every VLAN its own custom map.

The protocol comes in three flavours you need to know for CCNA:

• PVST – the original Cisco implementation, works only over ISL trunks (now legacy)
• PVST+ – the updated version that works over both ISL and 802.1Q trunks
• Rapid PVST+ – PVST+ with 802.1w Rapid Spanning Tree convergence, the default on every modern Cisco switch

When most people say “PVST” today, they actually mean Rapid PVST+. Same per-VLAN behaviour, just faster.

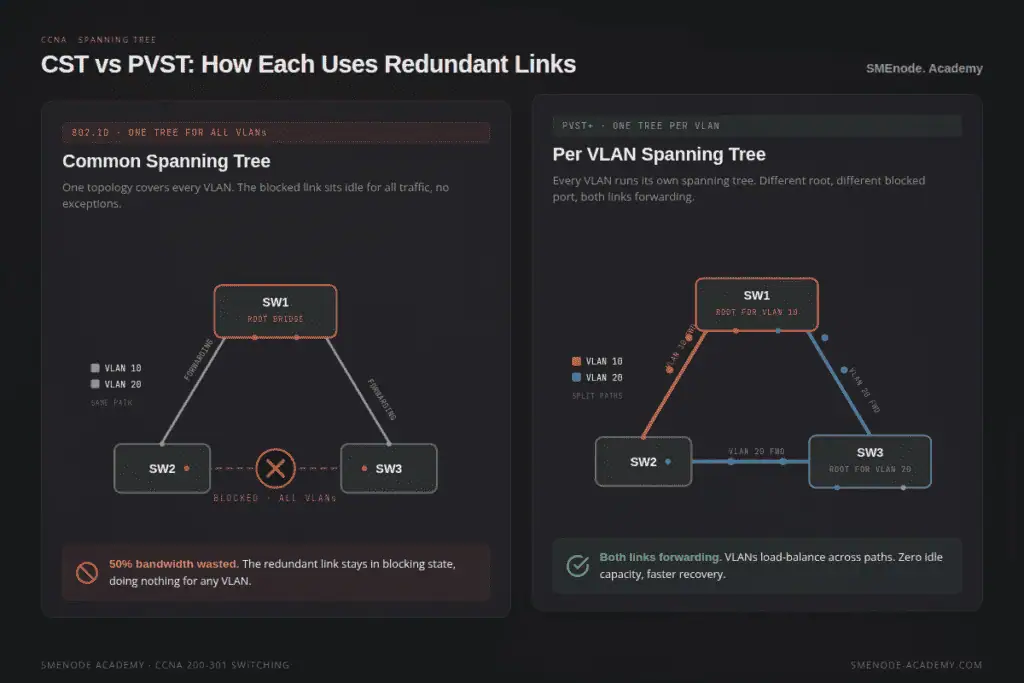

Why PVST Exists: The Common Spanning Tree Problem

To get why PVST matters, you need to see what it replaced. Standard 802.1D STP uses something called Common Spanning Tree (CST). One instance. All VLANs. No exceptions.

Here’s the deal. In a CST network with three switches in a triangle and two VLANs (say VLAN 10 for Sales and VLAN 20 for Engineering), the protocol picks one root bridge and blocks one link to break the loop. That blocked link stays blocked for every VLAN, even if it could have carried useful traffic.

The three big problems with CST:

1. Wasted bandwidth. If you spent money on a redundant fibre link, CST throws half of it in the garbage. The link sits in blocking state doing nothing.
2. Suboptimal paths. Voice traffic on VLAN 10 might need to detour through three hops when a direct link exists but is blocked.
3. No load balancing. You can’t send VLAN 10 one way and VLAN 20 the other way. One tree, one path, one mess.

Worth noting. A network change on one VLAN triggers reconvergence for all VLANs under CST. Every user feels the outage, not just the ones affected.

So Cisco fixed it. They built PVST to give each VLAN its own independent spanning tree calculation. Different root bridge per VLAN means different blocked ports per VLAN. Suddenly that “wasted” redundant link carries VLAN 20 traffic while another link carries VLAN 10 traffic. Both links forward, both earn their keep.

How Does PVST Actually Work?

Here’s where it gets technical. And where most CCNA students get confused.

PVST works by running the same STP algorithm you already know (BPDU exchange, root election, port roles, port states) but it does the whole process independently for every VLAN. One VLAN, one instance, one set of BPDUs.

The Per-VLAN BPDU

A standard 802.1D BPDU is VLAN-unaware. PVST+ solves this by sending a separate BPDU for every VLAN. These BPDUs travel:

• Untagged over the native VLAN (VLAN 1 by default), using the standard IEEE 802.1D multicast MAC address 01:80:C2:00:00:00
• Tagged with the VLAN ID on all other VLANs, using Cisco’s Shared Spanning Tree (SSTP) multicast MAC 01:00:0C:CC:CC:CD

Each PVST+ BPDU also carries the VLAN ID inside the bridge ID field. That’s how switches know which spanning tree instance the BPDU belongs to.

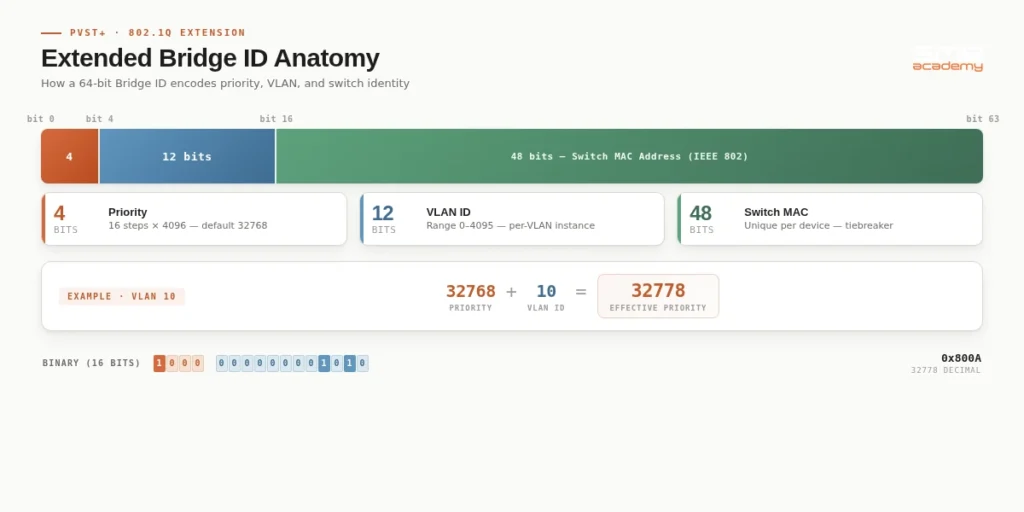

The Extended Bridge ID

The classic 802.1D bridge ID is 8 bytes: 2 bytes of priority plus 6 bytes of MAC address. That doesn’t work for PVST because you’d need one MAC per VLAN. Cisco’s fix? The Extended System ID.

PVST+ splits the 2-byte priority field into two parts:

Field	Size	Purpose
Priority (multiple of 4096)	4 bits	Administrator-set value, 0 to 61440
Extended System ID	12 bits	VLAN ID embedded in the bridge ID
MAC Address	48 bits	Switch base MAC (same for all VLANs)

That’s why spanning-tree vlan 10 priority only accepts values in increments of 4096. The lower 12 bits aren’t available, they hold the VLAN ID. If you set priority 32768 for VLAN 10, the actual bridge priority becomes 32768 + 10 = 32778. Small detail, but CCNA exam loves this.

Root Bridge Election Per VLAN

Each VLAN runs its own election. Lowest bridge ID wins. This means:

• VLAN 10 can have SW1 as root
• VLAN 20 can have SW2 as root
• VLAN 30 can have SW3 as root

Same physical network, three different logical trees. Different ports block on different VLANs. That’s how load balancing works under PVST.

Port Roles Per VLAN

In a classic STP network, a port is either forwarding, blocking, or in transition. In PVST, a single physical port can be forwarding for VLAN 10 and blocking for VLAN 20 at the same time. The port is “trunk” at Layer 2, but internally each VLAN sees its own state.

Which means. One cable. Multiple independent spanning trees running over it. All tracked in the switch control plane.

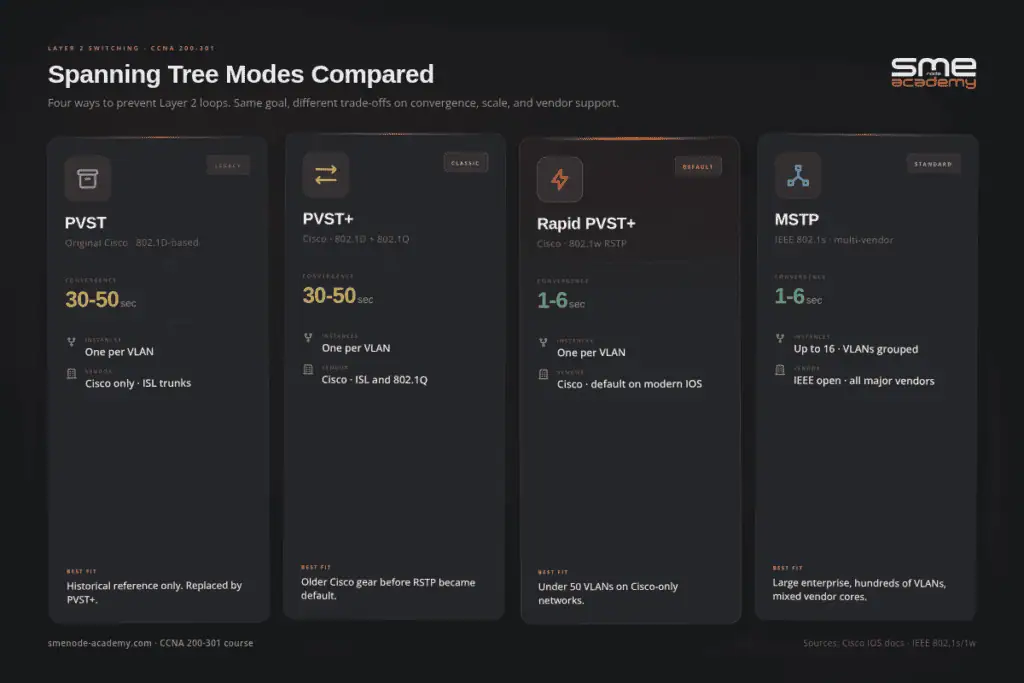

PVST vs PVST+ vs Rapid PVST+: What’s the Difference?

Three names, easy to mix up. Here’s the clean comparison.

Feature	PVST	PVST+	Rapid PVST+
Based on	802.1D STP	802.1D STP	802.1w RSTP
Instance per VLAN	Yes	Yes	Yes
Trunking supported	ISL only	ISL and 802.1Q	ISL and 802.1Q
Convergence time	30 to 50 seconds	30 to 50 seconds	1 to 6 seconds
Port roles	Root, Designated, Blocking	Root, Designated, Blocking	Root, Designated, Alternate, Backup
Port states	5 (Disabled, Blocking, Listening, Learning, Forwarding)	5	3 (Discarding, Learning, Forwarding)
Default on Cisco	No (legacy)	No	Yes (IOS 15.2(4)E and later)
CCNA 200-301 relevance	Historical	Medium	High

The pattern is simple. PVST was ISL-only, so Cisco built PVST+ for 802.1Q trunks and multi-vendor compatibility. Then they ported the Rapid Spanning Tree algorithm (802.1w) on top, giving you Rapid PVST+.

If you’re configuring a modern Cisco switch today, you’re using Rapid PVST+. End of story.

Rapid PVST+: The Speed Upgrade You Actually Use

Classic PVST+ takes 30 to 50 seconds to converge after a link failure. That’s ages in network time. A VoIP call drops. A video stream freezes. Users get angry.

Rapid PVST+ cuts that to 1 to 6 seconds. Here’s how.

What RSTP Changed

The 802.1w algorithm introduces three things that classic STP doesn’t have:

1. New port roles. Alternate and Backup ports are pre-calculated standby paths. When the root port goes down, the Alternate port takes over immediately without waiting for timers.
2. Three port states instead of five. Discarding (combines Blocking, Listening, Disabled), Learning, and Forwarding. Fewer states means faster transitions.
3. Proposal/agreement handshake. Instead of relying on timers, switches negotiate port transitions directly. A port can move to Forwarding in milliseconds when conditions are right.

And here’s the thing. Rapid PVST+ runs this faster algorithm per VLAN. So you still get load balancing, but convergence is fast enough that users barely notice failures.

Edge Ports and PortFast

Rapid PVST+ also brings the PortFast feature into the protocol itself. Access ports connected to end devices skip the Listening and Learning states and jump straight to Forwarding. No 30-second wait when a PC boots up.

Switch(config-if)# spanning-tree portfast

One command. Huge quality-of-life win.

PVST vs MSTP: When to Use Which?

This is the question that trips up most network engineers. Both give you VLAN-aware spanning trees. Both do load balancing. So which one wins?

Factor	Rapid PVST+	MSTP (802.1s)
Vendor	Cisco proprietary	IEEE open standard
Instances	One per VLAN	One per VLAN group (up to 16)
CPU/memory per switch	High (scales with VLAN count)	Low (fixed number of instances)
Scalability	Struggles past 100 VLANs	Handles thousands of VLANs
Configuration complexity	Simple	More complex (regions, instance mapping)
Multi-vendor interop	Limited	Excellent
Best fit	Small/medium Cisco networks	Large enterprise, mixed vendor

Rule of thumb. Fewer than 50 VLANs on Cisco gear? Rapid PVST+ is fine. Hundreds of VLANs or a mixed-vendor core? MSTP every time.

MSTP’s trick is mapping multiple VLANs to the same instance. Instead of 500 spanning trees for 500 VLANs, you might run 4 instances covering all 500. Way less CPU overhead. But you lose per-VLAN granularity.

For the CCNA exam, you need to recognise both. For production? You’ll probably touch Rapid PVST+ first. MSTP shows up more in CCNP Enterprise and larger deployments.

Configuring Rapid PVST+ on Cisco Switches

Here’s the part you actually came for. Full configuration with the commands CCNA candidates must know.

Step 1: Set the Spanning Tree Mode

Every Cisco Catalyst switch supports three modes. Check what’s running first.

Switch# show spanning-tree summary
Switch is in rapid-pvst mode

If you’re not already on Rapid PVST+, change it:

Switch(config)# spanning-tree mode ?
  mst              Multiple spanning tree mode
  pvst             Per-Vlan spanning tree mode
  rapid-pvst       Per-Vlan rapid spanning tree mode

Switch(config)# spanning-tree mode rapid-pvst

This is global. Applies to every VLAN on the switch.

Step 2: Configure the Root Bridge

You’ve got two ways. The manual way (setting priority) and the macro way (using the root primary command).

Manual method:

Switch(config)# spanning-tree vlan 10 priority 4096
Switch(config)# spanning-tree vlan 20 priority 4096

Macro method:

Switch(config)# spanning-tree vlan 10 root primary
Switch(config)# spanning-tree vlan 20 root secondary

The macro looks at current priorities in the network and sets yours to one level lower (usually 24576 for primary, 28672 for secondary). Simple, and it avoids priority collisions.

Priority values must be multiples of 4096. Valid range is 0 to 61440. Default is 32768.

Step 3: Enable PortFast on Access Ports

For any port connecting to a PC, printer, or server, turn on PortFast:

Switch(config)# interface fastethernet 0/1
Switch(config-if)# spanning-tree portfast
%Warning: portfast should only be enabled on ports connected to a single
 host. Connecting hubs, concentrators, switches, bridges, etc... to this
 interface when portfast is enabled, can cause temporary bridging loops.

Or enable it globally on all access ports in one shot:

Switch(config)# spanning-tree portfast default

The warning matters. Never turn on PortFast on a port that could connect to another switch. You’ll create a loop before STP has time to detect it.

Step 4: Harden the Network with BPDU Guard

PortFast without BPDU Guard is a security hole. Anyone plugging a switch into a PortFast port creates an instant loop. Fix it:

Switch(config)# spanning-tree portfast bpduguard default

Now if any PortFast-enabled port receives a BPDU, the switch puts the port in err-disabled state. Problem solved.

Full Example Configuration

Here’s a complete Rapid PVST+ setup on a distribution switch that’s the root for VLAN 10 and backup root for VLAN 20:

! Global spanning tree mode
spanning-tree mode rapid-pvst

! Set as root for VLAN 10, backup for VLAN 20
spanning-tree vlan 10 root primary
spanning-tree vlan 20 root secondary

! Enable PortFast and BPDU Guard on access ports
spanning-tree portfast default
spanning-tree portfast bpduguard default

! Access port example
interface GigabitEthernet 0/5
 switchport mode access
 switchport access vlan 10
 spanning-tree portfast
!
! Trunk port (STP runs here)
interface GigabitEthernet 0/24
 switchport mode trunk
 switchport trunk encapsulation dot1q
 switchport trunk allowed vlan 10,20,30

Copy, paste, adjust VLANs and interfaces to match your topology. That’s a production-ready baseline.

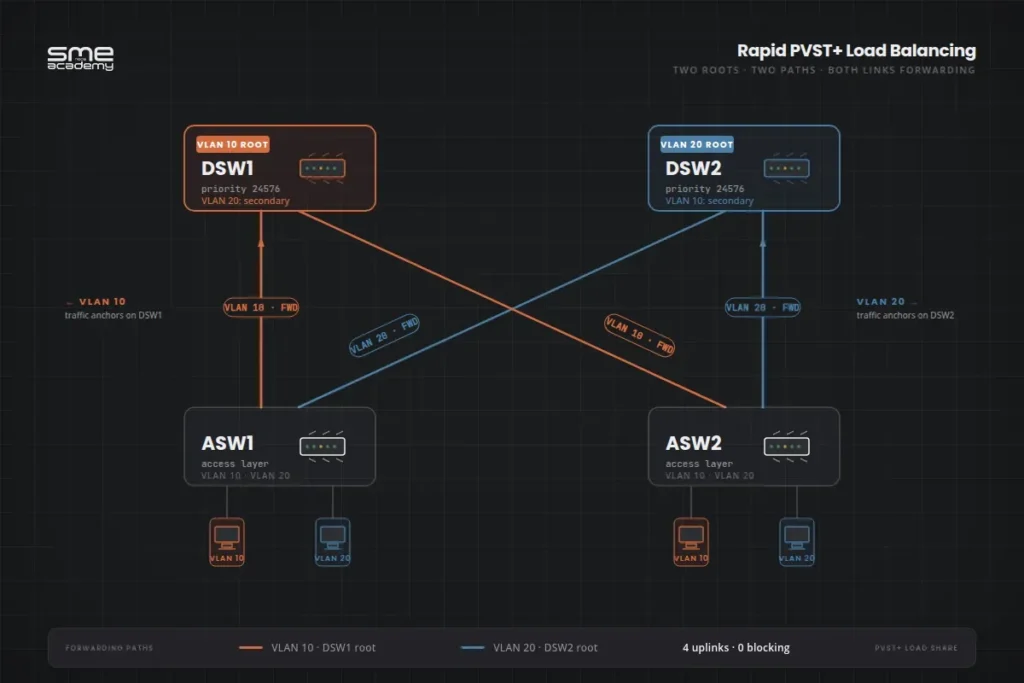

Load Balancing with PVST: The Real-World Payoff

The whole point of PVST is load balancing. Let’s see it working.

Say you have two distribution switches (DSW1 and DSW2) and two access switches (ASW1 and ASW2). Each access switch has redundant uplinks to both distribution switches. VLANs 10 and 20 exist on both.

Without PVST (or with CST): One root bridge, say DSW1. Every VLAN uses DSW1. Half of the ASW-to-DSW2 links block. That redundant fibre you paid for? Useless until DSW1 fails.

With PVST:

• Make DSW1 the root for VLAN 10 (spanning-tree vlan 10 root primary on DSW1)
• Make DSW2 the root for VLAN 20 (spanning-tree vlan 20 root primary on DSW2)

Now VLAN 10 traffic flows through DSW1. VLAN 20 traffic flows through DSW2. Both uplinks forward traffic. Both distribution switches share the load. Both redundant fibres earn their money.

If DSW1 dies, VLAN 10 reconverges to DSW2 in about 6 seconds under Rapid PVST+. Users see a blip. Nothing more.

That’s the business case for PVST. In one command per VLAN, you turned idle redundant hardware into working capacity.

How Do You Troubleshoot PVST?

Three commands you’ll use a thousand times in your CCNA labs and in production.

1. show spanning-tree

The single most important STP command. Shows every VLAN, every port role, every cost:

Switch# show spanning-tree vlan 10

VLAN0010
  Spanning tree enabled protocol rstp
  Root ID    Priority    24586
             Address     0019.aa11.2233
             Cost        4
             Port        24 (GigabitEthernet0/24)
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec

  Bridge ID  Priority    32778  (priority 32768 sys-id-ext 10)
             Address     0019.aa55.6677
             Hello Time   2 sec  Max Age 20 sec  Forward Delay 15 sec
             Aging Time  300 sec

Interface           Role Sts Cost      Prio.Nbr Type
------------------- ---- --- --------- -------- ----
Gi0/23              Altn BLK 4         128.23   P2p
Gi0/24              Root FWD 4         128.24   P2p

Look at three things:

• Protocol: should say rstp for Rapid PVST+
• Root ID Priority: 24586 means priority 24576 + VLAN 10
• Role: Root, Altn (Alternate), Desg (Designated), or Back (Backup)

2. show spanning-tree summary

Quick health check across all VLANs:

Switch# show spanning-tree summary
Switch is in rapid-pvst mode
Root bridge for: VLAN0010, VLAN0030
Extended system ID           is enabled
Portfast Default             is disabled
PortFast BPDU Guard Default  is enabled

3. show spanning-tree interface

Per-port view when you suspect one link is the problem:

Switch# show spanning-tree interface gigabitethernet 0/24 detail

This shows BPDU counters, timers, and recent transitions. If a port is flapping, this is where you catch it.

The Common Troubleshooting Flow

When something breaks:

1. Run show spanning-tree summary to confirm mode and find the root bridge
2. Run show spanning-tree vlan X on the affected VLAN to see port roles
3. Check if the wrong switch is root (bad priority config)
4. Check for port flapping with show interfaces status
5. Check BPDU Guard err-disabled status with show interfaces status err-disabled

Ninety percent of PVST issues come from one of these: wrong root bridge, duplex mismatch on a trunk, or BPDU Guard tripping because someone plugged a switch into a PortFast port.

Common PVST Mistakes to Avoid

We see these in our live labs every cohort. Watch out.

Setting root bridge without accounting for the Extended System ID. You set priority 32768 thinking you’re back at default. Actual priority becomes 32768 + VLAN ID. Your “default” switch ends up winning the root election for higher-numbered VLANs. Always use the root primary macro or set priority explicitly to values like 4096, 8192, 24576.

Forgetting to enable BPDU Guard with PortFast. PortFast skips the listening/learning states. Fine for end hosts. Dangerous if someone plugs in a switch. BPDU Guard catches it.

Running PVST+ with 500 VLANs. Your switch CPU will hate you. Each VLAN runs a full STP instance. At 500 VLANs, you’re sending 500 BPDUs every 2 seconds across every trunk. Move to MSTP instead.

Mismatched spanning tree modes between switches. One switch on Rapid PVST+, another on MSTP. Interoperability exists but it’s messy. Standardise the mode across your network.

Ignoring the native VLAN on trunks. PVST+ sends VLAN 1 BPDUs untagged. If your trunk has a different native VLAN on each end, STP breaks silently. Always match native VLANs.

What CCNA Students Need to Know About PVST

The CCNA 200-301 exam blueprint covers spanning tree under domain 2.5 (switching technologies). Here’s what gets tested.

You must be able to:

• Identify the default spanning tree mode on Cisco switches (Rapid PVST+)
• Calculate the actual bridge priority when Extended System ID is in play (priority + VLAN)
• Explain why the priority has to be a multiple of 4096
• Read show spanning-tree output and identify root/alternate/designated ports
• Configure Rapid PVST+ mode and set root bridge per VLAN
• Enable PortFast and BPDU Guard
• Compare PVST, PVST+, Rapid PVST+, and MSTP at a high level

What’s NOT on the CCNA but you’ll see in real networks:

• Detailed MSTP region configuration (that’s CCNP Enterprise territory)
• RootGuard, LoopGuard, UDLD (CCNP)
• Custom path cost tuning with spanning-tree cost commands
• PVST simulation checks and BPDU filtering

And if you’re still deciding between certifications, our CCNA vs CCNP comparison walks through which one fits your career stage.

Frequently Asked Questions

Bottom Line

Per VLAN Spanning Tree solves a real problem. One spanning tree per network wastes bandwidth and blocks useful paths. One spanning tree per VLAN lets you load balance, optimise paths, and still prevent loops.

For CCNA, you need to know three things cold:

1. Rapid PVST+ is Cisco’s default, based on 802.1w with one instance per VLAN
2. Priority must be a multiple of 4096 because of the Extended System ID
3. spanning-tree mode rapid-pvst, spanning-tree vlan X root primary, and spanning-tree portfast bpduguard default are the three commands that set up 90 percent of real-world deployments

Get those down and you’re set for the exam and for your first day configuring a production switch.

Want hands-on lab practice with real Cisco gear, not just simulators? Our CCNA live training runs 16+ weeks with CCIE instructors, unlimited lab access, and free 1-on-1 mentorship.

Still mapping out your networking career? Check out our guide on how to become a network engineer in 2026 for the full roadmap.
