Single Mode vs Multimode Fiber: Full Comparison

A team once ran 2km of multimode fibre between two buildings. The link never came up clean. They blamed the switches, the transceivers, even the weather. The real problem? Wrong fibre. Multimode dies long before 2km, and no amount of swapping optics fixes a physics limit.

That single mistake cost them a weekend and a re-trench. The good news is you can avoid it in about five minutes.

Here’s the short answer. Single mode fibre carries light far, multimode carries it cheap over short runs. If your link is under a few hundred metres and inside a building, multimode usually wins on cost. If you’re crossing campuses, cities, or planning for 400G and beyond, single mode is the safer bet.

That’s the whole decision in one line. The rest of this guide shows you why, with real numbers on distance, speed, and cost, so you pick right the first time. We’ll cover the physical difference, the spec tables network engineers actually reference, the cost math that trips people up, and a clean decision checklist at the end.

This stuff shows up on the CCNA exam and in every real network you’ll ever touch. Get it wrong on a job site and it’s expensive. Get it wrong on the exam and it’s a missed question. Let’s fix both.

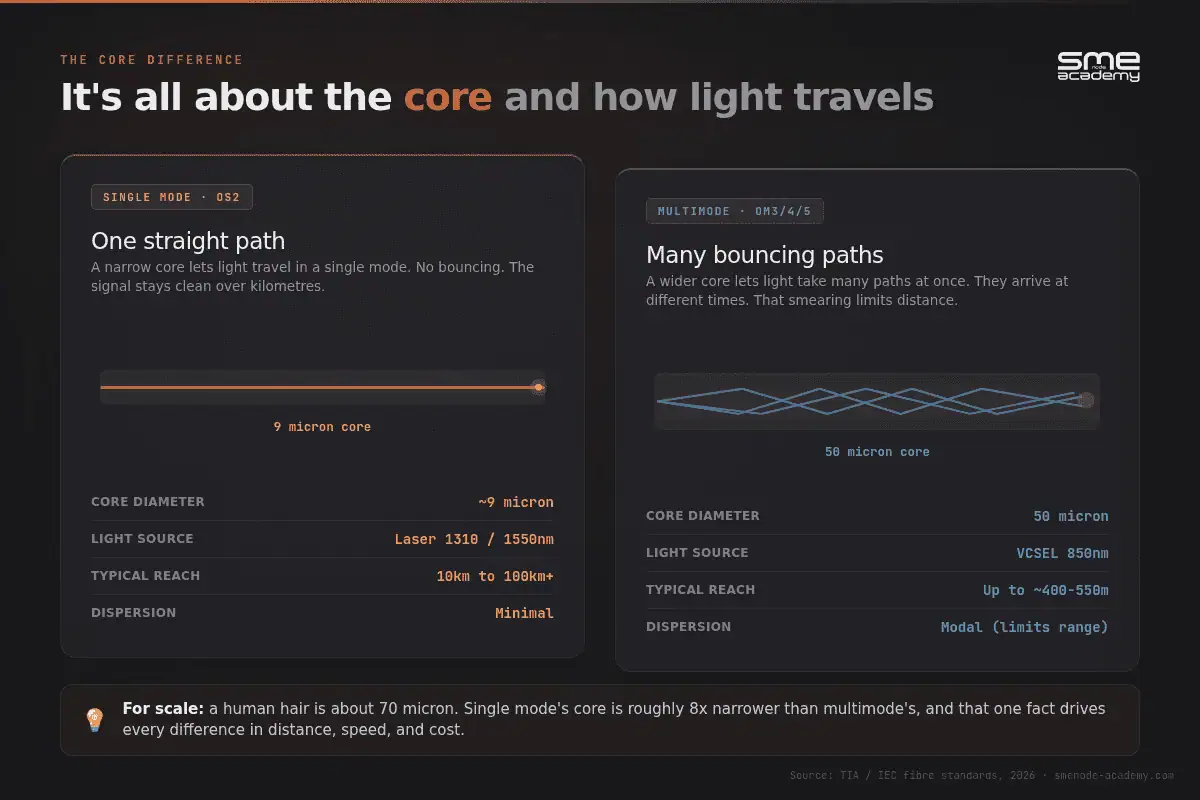

What’s the actual difference between single mode and multimode fiber?

Both cables look identical. Same glass, same jacket, same connectors most of the time. The difference is invisible, and it lives in the core.

The core is the tiny glass centre where light travels. Single mode fibre has a core around 9 microns wide. Multimode fibre runs 50 microns (or 62.5 on the old OM1 stuff). For scale, a human hair is about 70 microns. So single mode is roughly eight times narrower than multimode.

Why does core width matter so much? Light.

In single mode, the core is so narrow that light travels in basically one straight path, one “mode.” No bouncing. The signal stays clean over huge distances. In multimode, the wider core lets light bounce around in many paths at once. Those paths arrive at slightly different times, which smears the signal. That smearing is called modal dispersion, and it’s the reason multimode can’t go far.

Think of it like a hallway. Single mode is one person walking a straight line down a narrow corridor. Multimode is a crowd in a wide hall, some walking straight, some zig-zagging off the walls. The crowd spreads out. The lone walker arrives crisp.

There’s a second difference: the light source. Single mode uses lasers at 1310nm and 1550nm wavelengths. Multimode uses cheaper VCSELs at 850nm. That laser-vs-VCSEL split is a big reason the cost story flips depending on what you’re buying, more on that below.

New to this layer of networking? Fibre fundamentals sit right next to switching basics like per-VLAN spanning tree (PVST) on the CCNA blueprint. And if you’re still weighing which cert to chase first, our CCNA vs CCNP breakdown is worth a read before you spend a dollar.

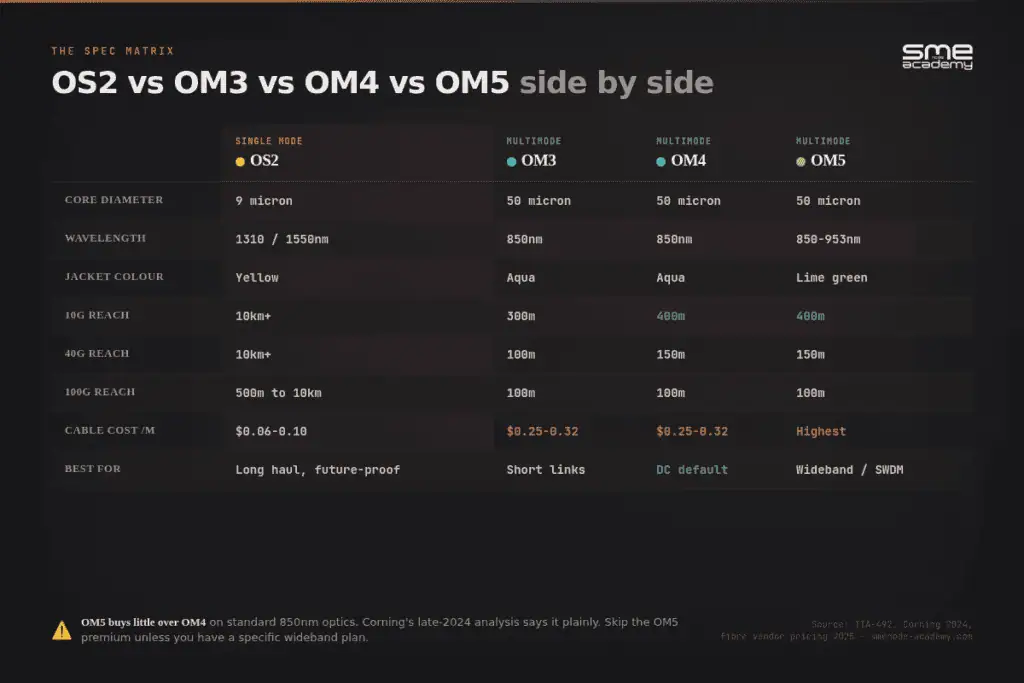

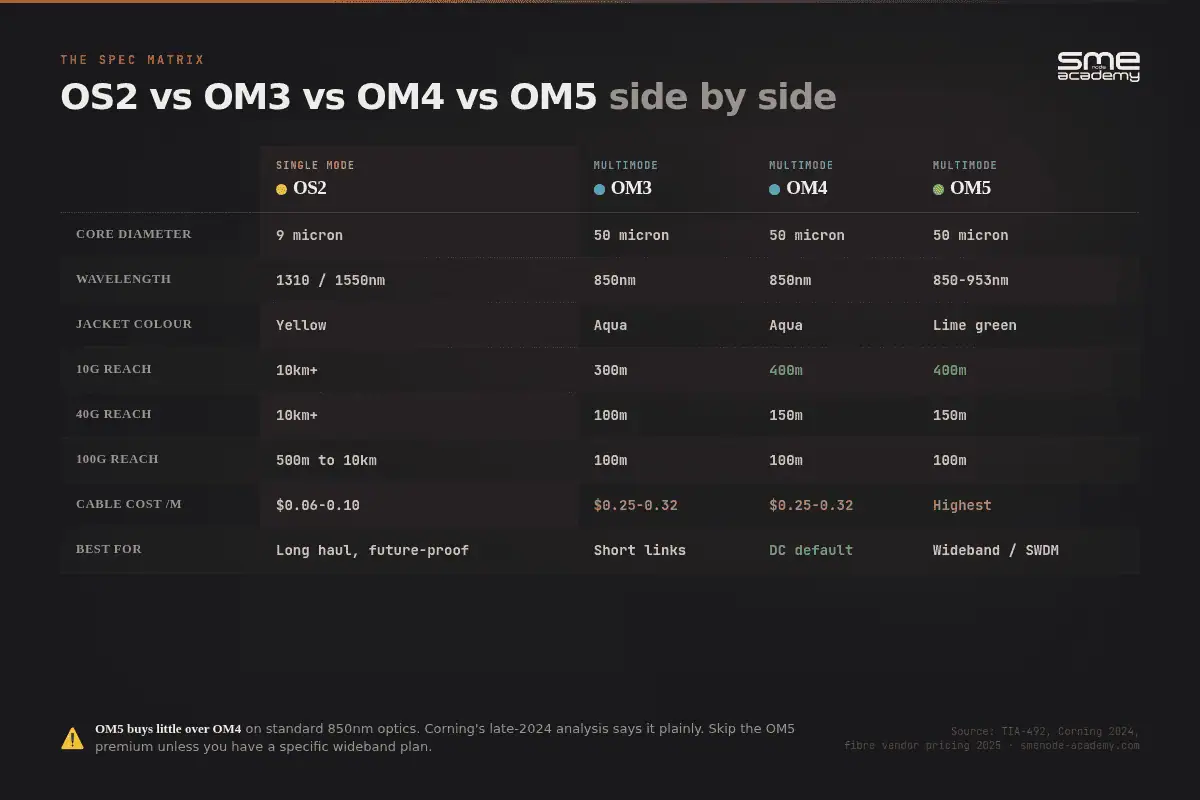

Single mode vs multimode fiber: the spec comparison

Here’s the side-by-side that matters. Print this one.

Feature	Single Mode (OS2)	Multimode (OM3/OM4/OM5)
Core diameter	~9 microns	50 microns
Light source	Laser (1310 / 1550nm)	VCSEL (850nm)
Typical reach	10km standard, 100km+ possible	Up to ~400-550m
Cable jacket colour	Yellow	Aqua (OM3/OM4), lime green (OM5)
Bandwidth ceiling	Effectively unlimited (optics-limited)	Capped by modal dispersion
Cable cost per metre	Lower ($0.06-$0.10)	Higher ($0.25-$0.32)
Transceiver cost	Higher (1.5x to 5x)	Lower
Best for	Long haul, ISP, future-proofing	Data centre, in-building, short reach

A few things jump out.

First, single mode reach is in a different league. A single OS2 fibre plant can run from 1G all the way to 400G with nothing more than a transceiver swap. The glass doesn’t change. That’s huge for future-proofing.

Second, multimode is not one thing. It’s a family. And the family members matter a lot.

Multimode types: OM3 vs OM4 vs OM5

Not all multimode is equal. The OM rating tells you how far and how fast.

Type	Colour	10G reach	40G reach	100G reach
OM3	Aqua	up to 300m	100m	100m
OM4	Aqua	up to 400m	150m	100m
OM5	Lime green	up to 400m	150m	100m

OM4 has more than double the modal bandwidth of OM3 (4700 MHz·km versus 2000). That’s why it stretches further at every speed.

OM5 is the newest, released back in 2016. It adds “wideband” support so several wavelengths can share one fibre using SWDM. Sounds great. Here’s the catch. For standard 850nm optics, OM5 buys you almost nothing over OM4. Corning’s own late-2024 analysis said it flat out: OM5 provides no real value compared to OM4 when you’re running standard 850nm gear. So don’t pay the OM5 premium unless you have a specific wideband plan.

Bottom line on multimode: OM4 is the sensible default for most new short-reach runs today.

Which fiber is cheaper? The cost trap nobody explains

This is where people lose money. The honest answer: it depends on what you’re counting and how far you’re going.

Most folks assume single mode is the expensive one. That’s half true.

The cable itself? Single mode is actually cheaper per metre now. OS2 runs about $0.06 to $0.10 a metre. OM4 multimode runs $0.25 to $0.32. So multimode glass costs 60-70% more.

But the transceivers flip the math. A 10G multimode SFP might run $100. The single mode equivalent? Around $200. Single mode optics run 1.5 to 5 times pricier depending on speed, because lasers cost more than VCSELs.

So the total cost depends on distance and link count.

Say you’re wiring a data centre. Marcus, a network engineer at a mid-size hosting company, needed 100G links between racks 50 metres apart, 48 of them. He priced both. The multimode path (optics plus cable) came to roughly $115 per link. Single mode? About $217 per link. Across 48 links, multimode saved him over $4,800. For 50-metre runs, that was an easy call.

Now flip the scenario. The same company needed one 100G link between two buildings, 800 metres apart. Multimode physically can’t do it. Modal dispersion kills the signal past ~150m at 100G. Single mode was the only option, and the higher transceiver cost was irrelevant because there was no alternative.

The crossover point for 100G runs sits around 200 to 250 metres. Under that, multimode usually wins on total cost. Over it, single mode takes the lead, often by being the only thing that works.

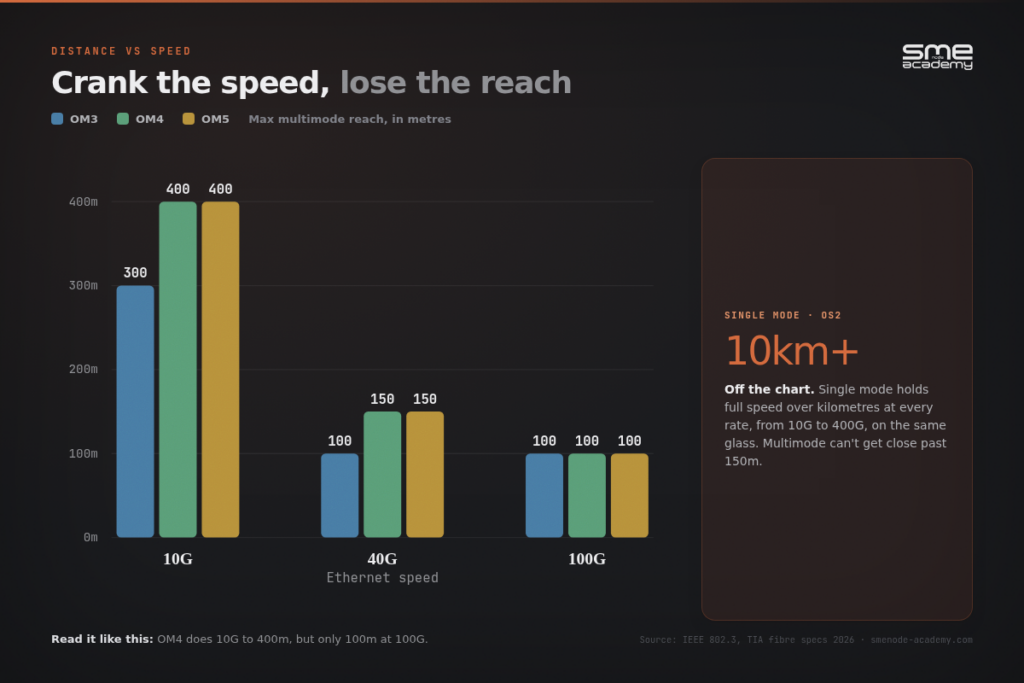

Speed and distance: how far can each fiber really go?

Let’s kill a myth. “Single mode is faster” is wrong. Both fibres hit the same data rates. 10G, 40G, 100G, 400G, all possible on either, at short range.

The difference is distance at speed.

Single mode holds its speed over kilometres. At 100G, standards like 400GBASE-DR4 push 500m on single mode, and longer-reach optics go far past that. Need 10km at 100G? Single mode does it. Multimode can’t get close.

Multimode trades distance for cost. The faster you go, the shorter your maximum run:

• At 10G, OM4 reaches up to 400m. Comfortable for most buildings.
• At 40G, that drops to 150m.
• At 100G, you’re down to about 100m.

See the pattern? Crank the speed, lose the reach. That’s modal dispersion doing its thing. The signal smears more at higher rates, so you have to keep runs shorter to stay clean.

This is why data centres love multimode for top-of-rack and server links. Those runs are short, often under 30 metres, and multimode keeps the optics cheap at high density. Cross that 100-150m line, though, and single mode becomes mandatory for 400G work whether you like the price or not.

One more thing engineers forget. Distance specs assume clean connectors and quality splices. Dirty LC connectors will tank your link budget on either fibre. A contaminated endface is the number-one cause of “the cable should work but doesn’t” tickets. Clean your connectors. Every time.

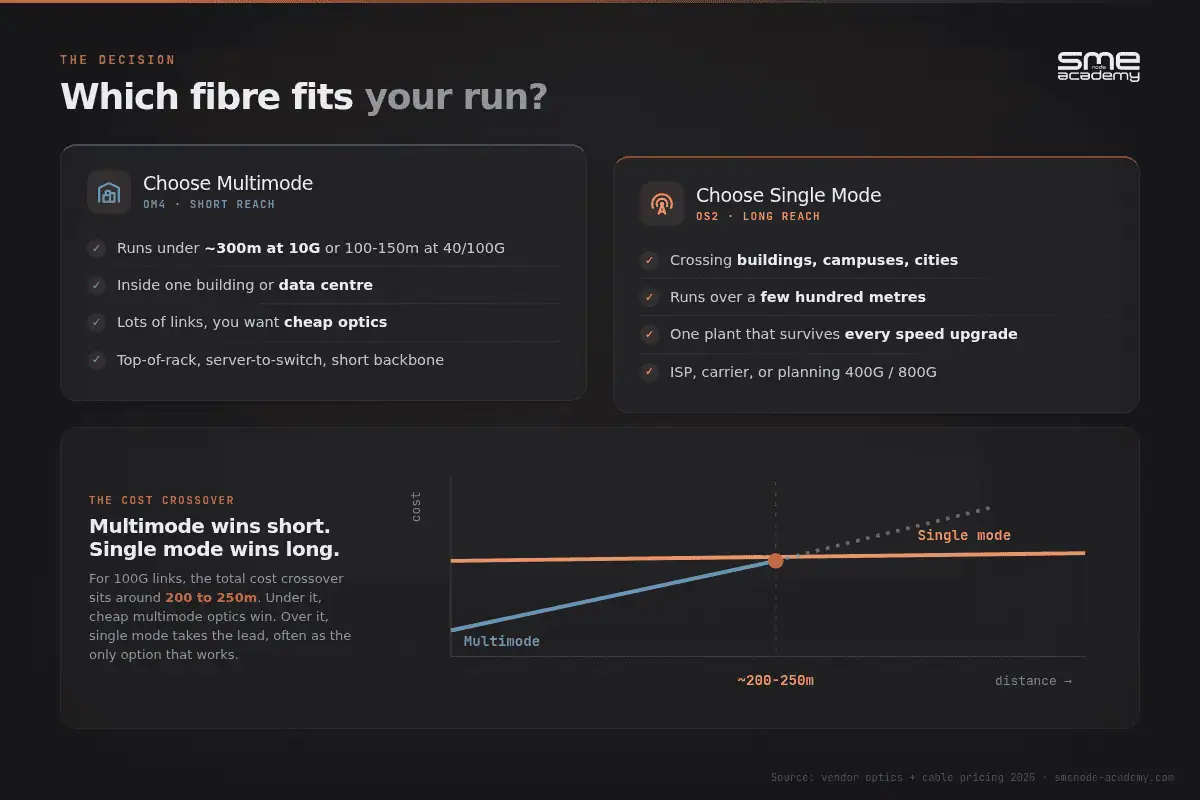

When should you choose single mode vs multimode?

Here’s the decision flow. Honest and practical.

Choose multimode (OM4) when:

• Your runs are short, under ~300m at 10G or under 100-150m at 40/100G
• You’re inside a single building or data centre
• You have lots of links and want to keep transceiver costs down
• You’re doing top-of-rack, server-to-switch, or short backbone runs

Choose single mode (OS2) when:

• You’re crossing buildings, campuses, or cities
• Runs exceed a few hundred metres
• You want one fibre plant that survives every speed upgrade for the next decade
• You’re an ISP, carrier, or planning serious 400G/800G growth
• You’re not sure how far the link will need to scale later

That last point is the quiet winner for single mode. Sarah, a systems engineer at a growing school district, ran single mode between campus buildings in 2019 even though they only needed 1G then. Six years later they jumped to 40G. Zero re-cabling. Same glass, new optics, done in an afternoon. The “expensive” choice up front saved them a full re-trench later.

Most real networks use both. Single mode for the long backbone between sites. Multimode for the cheap, dense, short stuff inside the racks. That’s not a compromise, it’s just good design.

Still deciding between cabling and a broader networking path? Our guide on how to become a network engineer in 2026 maps out where physical-layer skills fit in the bigger picture. And if you’re working through routing decisions too, BGP vs OSPF: when to use which protocol uses the same “right tool for the job” thinking applied to routing.

Connectors, colours, and quick field tips

A few practical notes that save real headaches.

Connectors. LC is the small, modern connector you’ll see most, used on both single mode and multimode in data centres. SC is the older, larger square connector, more common in legacy and some multimode installs. The connector type doesn’t change whether a fibre is single or multimode, the glass does.

Colour coding. Vendors usually follow the convention: yellow jacket means single mode, aqua means OM3 or OM4 multimode, lime green means OM5. It’s a convention, not a law, so always verify. But colour gives you a fast first guess in a messy patch panel.

Don’t mix modes. You can’t connect single mode to multimode and expect it to work. The core sizes don’t match, so you get massive loss at the junction. If a link won’t come up, check that both ends are the same fibre type before you blame anything else.

Match your optics to your fibre. A single mode transceiver needs single mode fibre. A multimode transceiver needs multimode. Mismatch them and either the link fails or you cook the optics over time. Cisco’s transceiver compatibility documentation at cisco.com lists exactly which optic pairs with which fibre and reach, worth bookmarking for any real deployment.

For the fundamentals behind all of this, CompTIA’s Network+ objectives cover fibre types as core knowledge, and they’re a solid baseline before you go deeper into vendor-specific tracks.

Conclusion: pick the fiber that fits the run

So where does this leave you?

Five takeaways to remember:

1. Single mode goes far, multimode goes cheap (short). That’s the core trade-off.
2. Core size is the real difference. 9 microns versus 50. Everything else flows from that.
3. Cost flips with distance. Multimode wins under ~200-250m at 100G. Single mode wins past it, or when it’s the only option that works.
4. OM4 is the smart multimode default. Skip OM5 unless you have a specific wideband plan.
5. Future-proofing favours single mode. One fibre plant, every speed upgrade, no re-trench.

Match the fibre to the run and you’ll never repeat that 2km multimode mistake from the start of this article.
